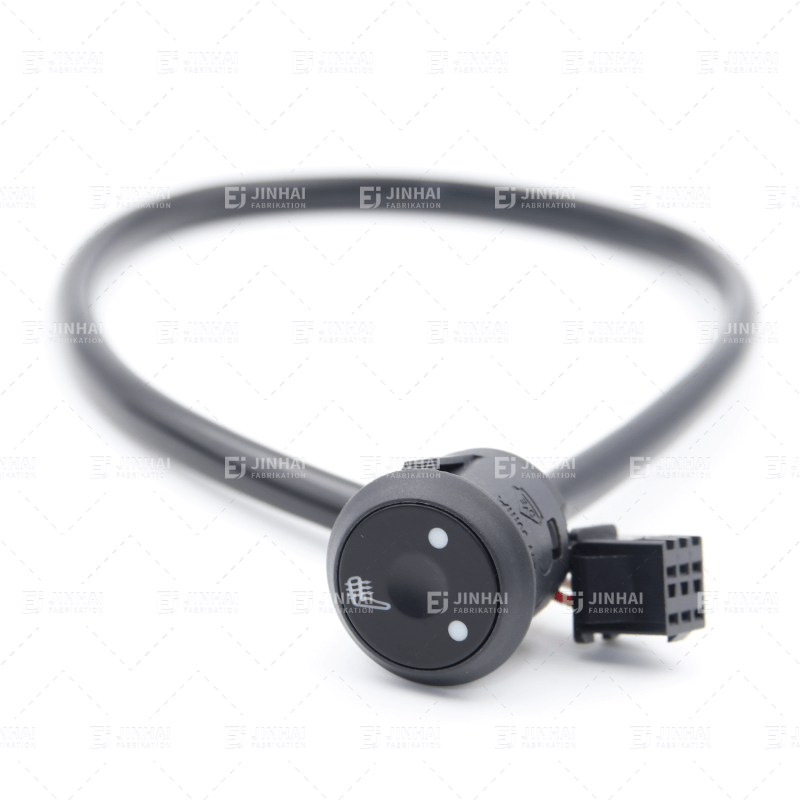

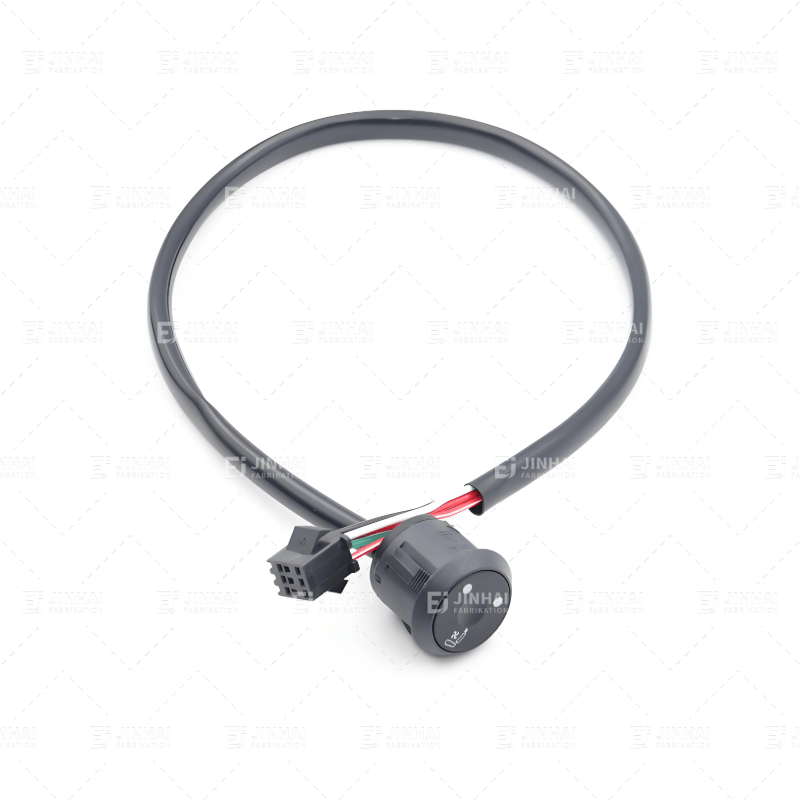

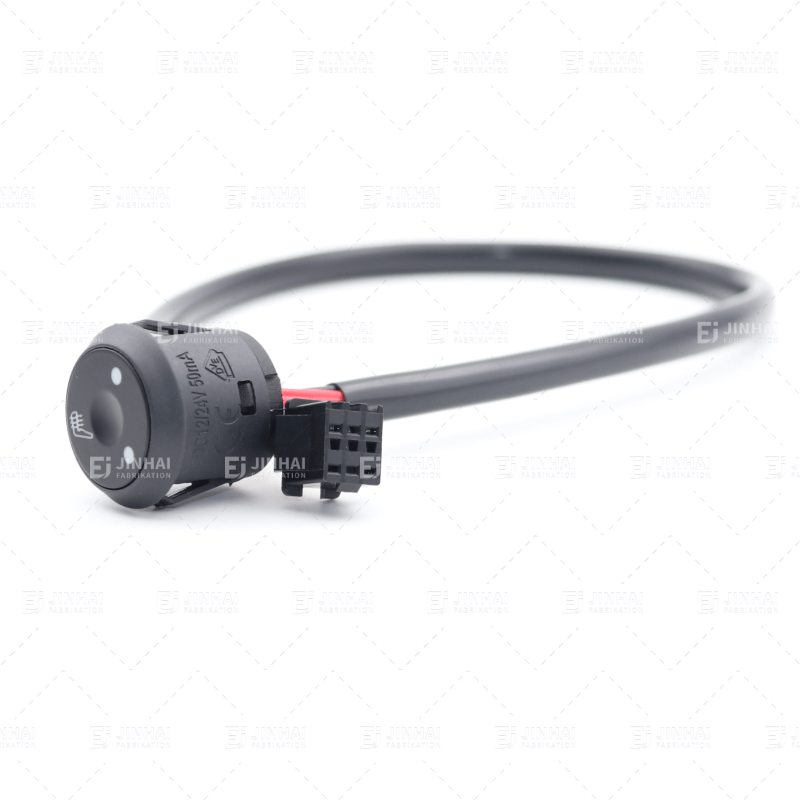

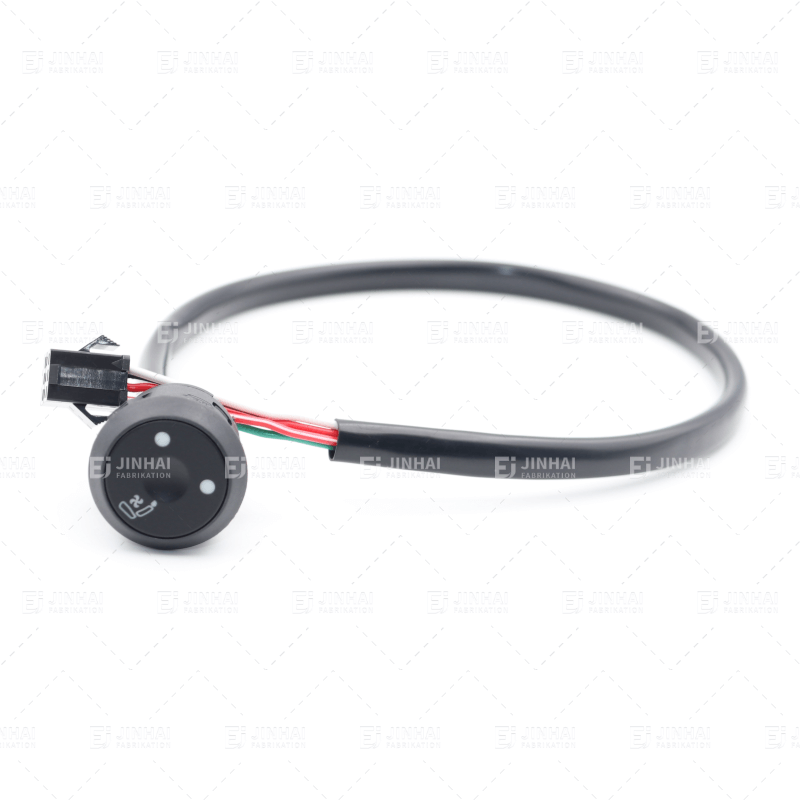

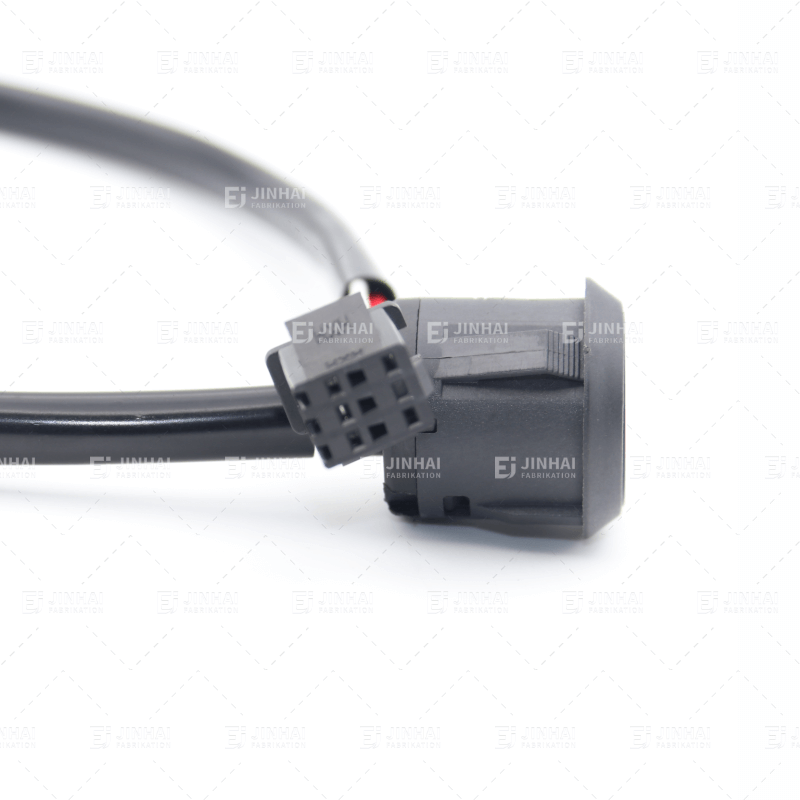

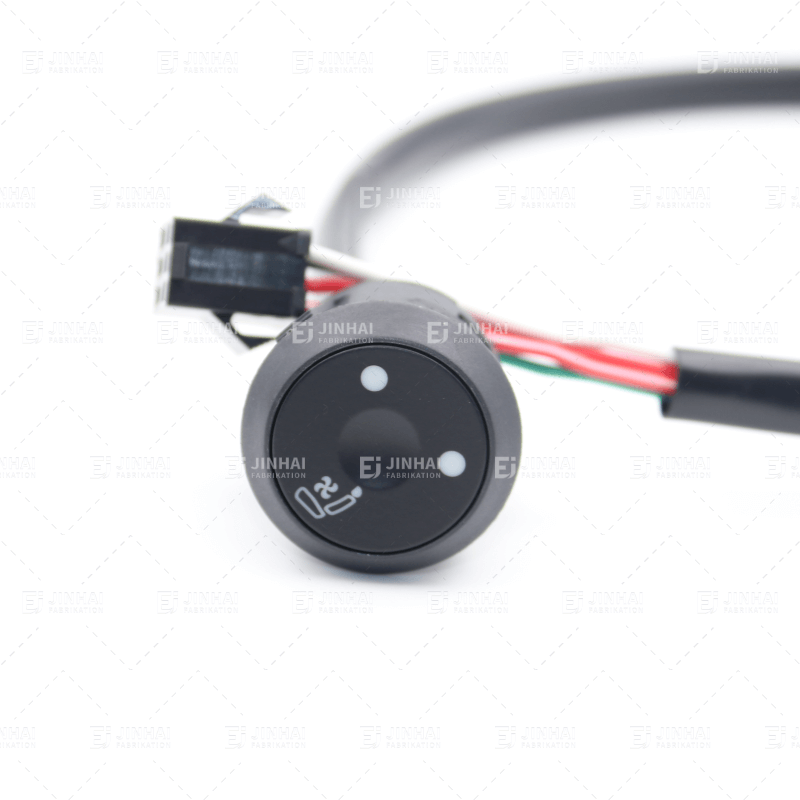

Round 2-speed seat heating switch Advantages
Marking lighting: The switch uses a striking red backlit logo, allowing drivers and passengers to accurately locate the switch even in dim conditions.
Work Instructions:When starting the 1st or 2nd gear heating, the red indicator light will light up simultaneously, and the strong light warning will avoid misoperation and ensure driving safety.
Sensitive button response: ergonomic design, clear tactile feedback, to avoid blind operation errors while driving.
380mm extended lead: Breaks through conventional cable length limitations, easily meeting long-distance wiring requirements such as steering column and seat sides, significantly reducing installation difficulty and labor costs.
Millimeter-level thin and light design: The overall size is only φ23.2mm×23.7mm (diameter×height), which is 21% thinner than similar products and perfectly fits compact vehicles.
Low power consumption: The standby current of the switch is less than 1mA, which saves power and is the preferred product for marine or outdoor equipment.
Fully compatible panel adaptation: The φ20mm mounting hole supports 6 types of panel thicknesses (0.9/1.35/1.8/2.2/2.7/3.2mm), and can be seamlessly installed from carbon fiber trim to leather-covered panels.
Personalized adaptation: According to the needs, LED backlight colors are provided (red, blue and white or other colors are optional), metal or plastic panel materials can be provided, and LOGO logos can be customized.
Industry pain points
| Traditional shortcomings | This product solution |
| Short lead (≤260mm) | 380mm extra-long lead wire, no dead angle for wiring |
| Two-color indication is easy to confuse | Red label + red light dual effect in one, the logic is self-evident |
| Thick switches take up space | 23.7mm ultra-thin body, invisible installation |
| Single backlight design | Personalized design to meet multiple color selections |
| Low operating life <5000 times | Can meet 10,000 presses |
| The contact resistance is larger than 100mΩ | Small contact resistance <50mΩ, improving energy efficiency |
Typical application scenarios
- Car seat dual-speed heating system
- Steering wheel/armrest box quick heating device
- RV heater graded temperature control
- Special engineering vehicle heating equipment
Why choose it?
This product has comprehensively improved its electrical performance and functional expandability, meeting the requirements for applications in multiple fields while also providing aesthetically pleasing appearance. Its “all-red lighting system breaks through traditional design—strikes a perfect balance between warning and aesthetics, allowing for safe and exciting driving experiences.” It is the optimal control solution for high-performance heating systems.
