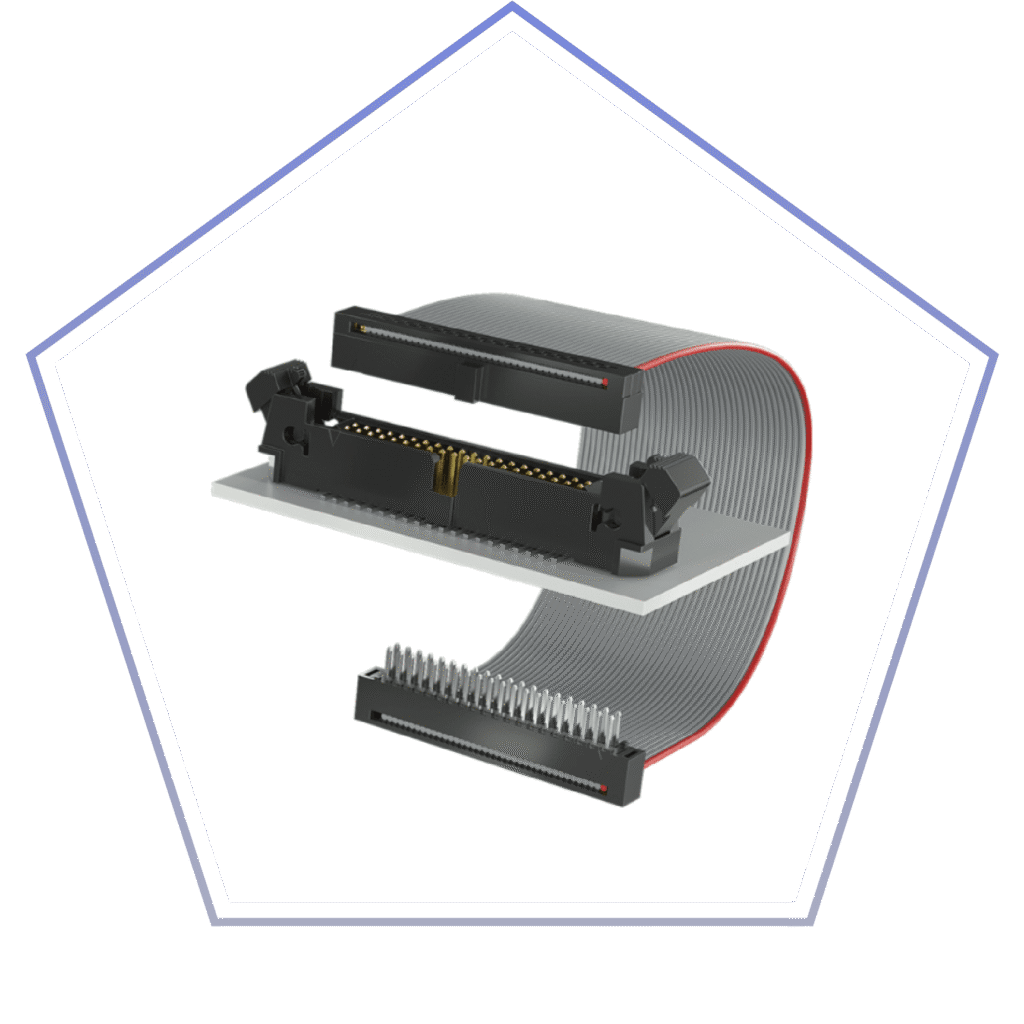

Consumer Electronics Wiring Harness and Components
JinHai manufactures and assembles custom cable assemblies for consumer electronics OEMs. Our products offer unmatched cost advantages, exceptional stability, and zero interference.
Our Amazing Clients
JinHai boasts over 15 years of experience in custom cable and wiring harness manufacturing. The harnesses we design and produce ensure reliable and stable operation of tractors, agricultural equipment, and other farm machinery even in harsh environments.
Application Areas of Consumer Electronics
Our consumer electronics products are used in the following fields:

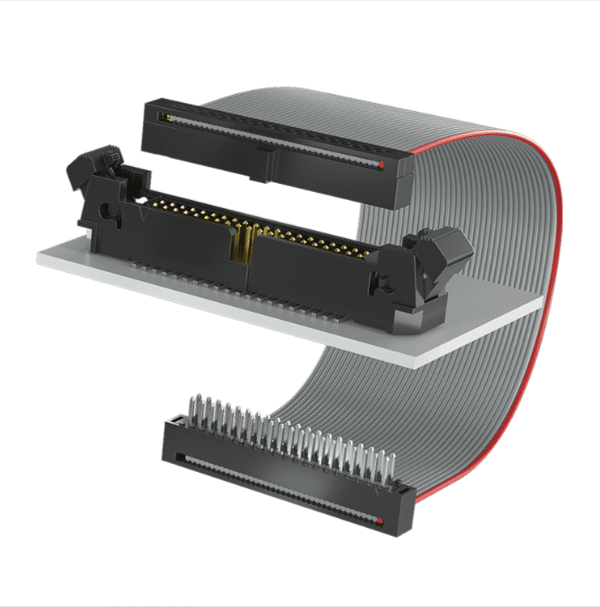

Smart electronic products
This is the most widely applied category, encompassing smart TVs, smart home hubs, handheld devices, and other electronic equipment. These devices require power and data transmission within confined spaces, necessitating cable assemblies that are compact and highly efficient.

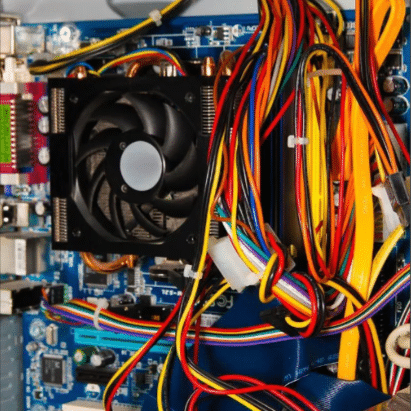

Personal Computing and Office Equipment
Data transmission and power delivery are core elements ensuring the stable operation of computer components and their peripherals. Such cables include VGA adapter cables, Cat6 Ethernet cables, IEEE 1394 industrial cables, USB printer cables, and more.
Audio and Home Entertainment
To ensure stable operation of electronic devices such as televisions, game consoles, and home entertainment systems, cables like HDMI and USB require shielded harnesses or cable assemblies that resist electromagnetic interference. JinHai possesses robust design and manufacturing capabilities to guarantee this feature.
Our Product
Our consumer electronics include the following products:
FFC Cable Assembly
FFC cable assemblies are cables formed by compressing copper wires, providing a wire-to-PCB connection method. This connection is particularly suitable for transmitting power or signals in dynamic environments, such as medical electronic devices, access control systems, and smart printers.

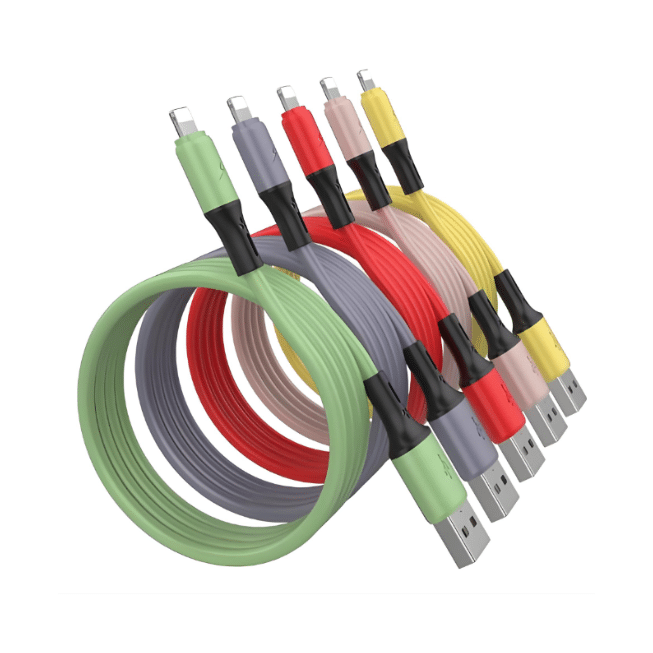

Waterproof USB Solutions
Constructed with copper-clad tin-plated twisted pair cables, waterproof connectors, and shielding layers, it offers waterproof ratings ranging from IPX4 to IPX8. Installation options include direct plug-in or magnetic snap-on connections. All components are rated for up to 10,000 insertion cycles. Featuring 24 pins, it supports compatibility with various video and audio signal output protocols.

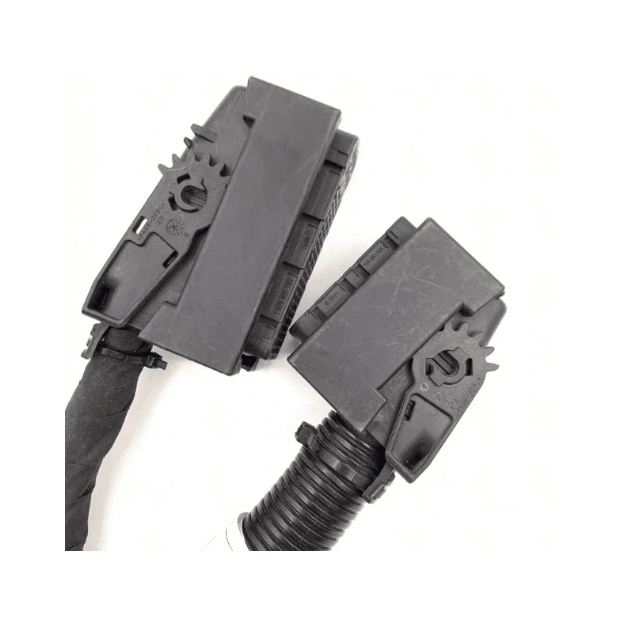

Dual-locking connector
Our household cable assemblies feature dual-lock connectors with a 2.0mm contact pitch, offering both wire-to-board and wire-to-wire connection options. The plug housing incorporates mounting rails and internal dual-locking tabs to ensure 100% correct connection. Suitable for signal transmission in home appliances.
Submit Your Order
Our robust design and manufacturing capabilities enable us to produce uniquely distinctive products.
| Length | According to your specific requirements | |
|---|---|---|
| Termination | Crimp connectors for power transmission Welded or brazed connectors for high-speed signal transmission Micro connectors (0.6mm pitch) 30 to 50 terminations |
|
| Electrical wire | conductor | Copper is compatible with multiple coatings such as tin, silver, and gold, each offering distinct corrosion and oxidation resistance properties. Copper alloys exhibit higher tensile strength, making them suitable for applications requiring enhanced mechanical properties. |
| dielectric | PVC-Insulated Electrical Wire High-Temperature Option Various Configurations (Sizes, Specifications, and Colors) |
|
| Covering | Masking tape Fleece tape Electrical tape Braided mesh tubing PVC hose Shielded mesh tubing Or any combination of two or more of the above materials |
|
Why Choose JinHai ？
JinHai is the preferred wire harness manufacturer for numerous automotive companies for the following reasons:
Customized Solutions
Adjust the design plan promptly according to your requirements, including connector type, material, dimensions, and shielding level.
Quality Assurance
All our raw materials undergo rigorous quality control measures from procurement to assembly to ensure products meet international standards.
Fast delivery
With 20 years of manufacturing experience and deep knowledge of the consumer electronics market, we ensure rapid product delivery.
Quality and Safety, Guaranteed
Our agricultural machinery wiring harness assemblies are certified to ISO 9001:2015 and ITAR standards, meeting the highest global quality benchmarks, including those of the United States and Canada.
What Our Customer Say
What are the advantages of custom wiring harnesses in the consumer electronics industry?
In addition to cost savings and easy installation, you can enjoy greater stability and superior power and signal stability.
What does JinHai focus on when designing consumer electronics cable assemblies?
Highly integrated, customized, signal stability, and environmental protection.
What other products in the traditional consumer electronics sector can JinHai manufacture?
Yes. We manufacture legacy video and audio cables, such as RF, VGA, RCA, S-Video, and MIDI cables, as well as legacy computer cables like PS/2, parallel, and serial cables.
What happens when wiring harnesses fail?
Failures in consumer electronics wiring harnesses can lead to a wide range of issues, including device malfunctions, intermittent appliance functionality, and even fires.
